ST6555 Ytterbium Planar Target
  • Catalog No.ST6555
  • CAS Number7440-64-4
  • MaterialYb
  • Density6.90 g/cm3
  • Purity99.9%

Stanford Materials Corporation (SMC) offers high-purity Ytterbium Planar Targets specifically engineered for advanced thin-film applications. Featuring 99.9% purity, customizable dimensions, and finely optimized grain structures, these targets ensure superior sputtering performance. SMC maintains rigorous quality control, argon-sealed packaging, and a robust global logistics network, providing reliable solutions for both research and industrial applications.

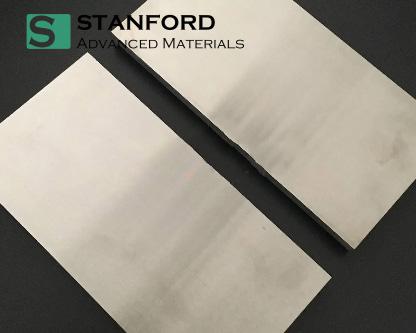

Ytterbium-planar-target
Ytterbium-planar-target

Ytterbium Planar Target Overview:

SMC's Ytterbium Planar Targets are fabricated from 99.9% to 99.99% (3N–4N) purity ytterbium metal, tailored for high-precision thin-film deposition. These targets are offered in standard diameters from 50 to 200 mm and thicknesses ranging from 3 to 10 mm. For enhanced thermal stability, they can be bonded to copper or molybdenum backing plates. With a fine-grained microstructure (<50 µm) and a high density (>95% theoretical value), they minimize particle generation and ensure uniform film deposition. All targets are vacuum-sealed in argon-filled packaging to avoid oxidation, with certifications including ICP-MS impurity analysis and XRD crystallographic testing. SMC also offers optimization support for sputtering parameters, such as RF power and gas pressure, and guarantees shipping within 3–4 weeks for standard specifications.

Ytterbium Planar Target Specifications:

  • Purity: 99.9%
  • Density: 6.90 g/cm³
  • Melting Point: 824°C
  • Boiling Point: 1196°C
  • Shape: Rectangular or customized upon request
  • Size: Customizable to specific requirements

Note: For more details, please contact SMC to discuss your unique needs.

Applications of Ytterbium Planar Targets:

  1. Fiber Lasers & Amplifiers: Used for Ytterbium-doped films in high-power fiber lasers (e.g., Yb:YAG) for telecommunications and industrial cutting.
  2. Atomic Clocks: Essential for ultra-precise optical lattice clocks.
  3. Solar Cells: Enhances photon conversion efficiency with Ytterbium-based coatings in perovskite solar cells.
  4. Nuclear Medicine: Ytterbium-169 isotope coatings for portable gamma-ray sources.
  5. Quantum Research: Utilized in quantum memory and entanglement studies with Yb³⁺-doped materials.

Packaging Details:

SMC packages its products in tailored cartons or wooden crates, depending on the size of the product. Smaller items are securely packed in PP boxes, while larger ones are carefully stored in custom wooden crates to ensure optimal protection during transit.

Manufacturing Process:

  • Production Flow: A detailed process flow to ensure quality from start to finish.

flowchart target material

  • Testing Methods:
    • Chemical Composition Analysis: Conducted using techniques like GDMS and XRF.
    • Mechanical Testing: Includes tensile strength and elongation tests.
    • Dimensional Inspection: Ensures correct thickness, width, and length.
    • Surface Quality Checks: Visual and ultrasonic inspections for defects.
    • Hardness Testing: Confirms material reliability and uniformity.

Frequently Asked Questions:

Q1: What’s the purity of the Ytterbium Planar Target?

A1: SMC's Ytterbium Planar Target has 99.9% purity.

Q2: How should Ytterbium targets be safely handled?

A2: Store them in dry argon and avoid direct skin contact. Always use gloves and cleanroom protocols.

Q3: What sputtering parameters should I use?

A3: Typical parameters include RF power of 80–200 W, Ar pressure of 2–5 mTorr, and a substrate temperature range of 100–300°C.

Ytterbium Rotary vs. Planar Target Comparison:

Feature Ytterbium Rotary Target Ytterbium Planar Target
Material Utilization 80-90% 30-40%
Service Life Longer Shorter
Coating Uniformity More uniform Potential thickness variations
Production Cost Higher long-term cost Lower initial cost, requires more frequent changes
Applications Large-area coatings Small-area coatings
Sputtering Stability More stable Less stable
Compatible Equipment Rotary sputtering systems Traditional planar sputtering systems

Related Information:

  • Ytterbium Raw Materials: Atomic number 70, melting point 824°C, density 6.97 g/cm³.
  • Key Uses: Lasers, atomic clocks, radiation shielding.
